SAVE ENERGY AND WIDE OUT WASTE.IT WILL GREATLY REDUCE YOUR COST OF AIR CONSUMPTION.

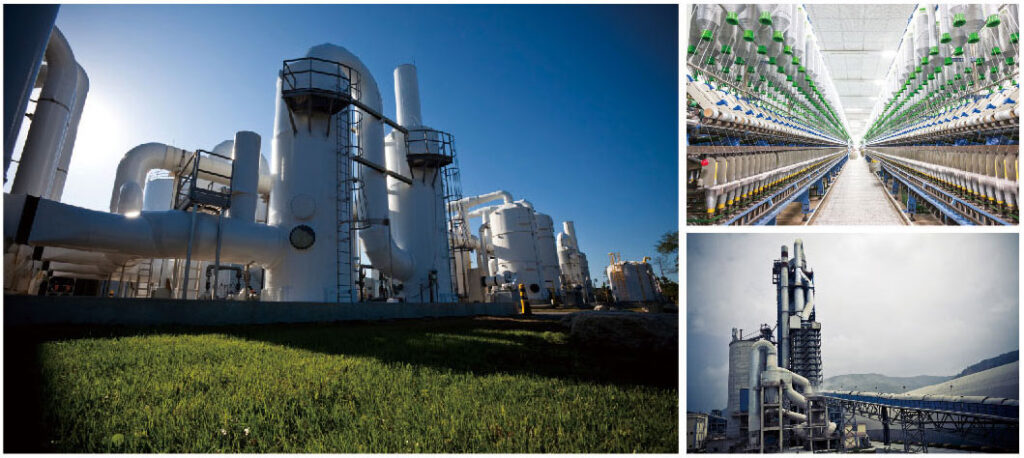

Working pressure of compressed air needed in industries like textile, cement building materials, chemical engineering, blown glass bottle, water processing and so on is 2-5, however, at present, this is realized by using 7-8 air compressor installed with reducing valve mostly,and this is undoubtedly energy waste. Directing at this working condition,we have researched and developed low-voltage permanent magnetic dual-screw air compressor which directly outputs suitable working pressure.
Nhole set of low-voltage permanent magnetic air compressor system solution customized for you
With the whole set of compressed air system, vou will not have to be worried about matching of all kinds of eguipments when the system has any problem or needs maintenance or care, it will be unnecessary for you to call diferent suppliers as we can solve all problems for you.
Compressed air contains all kinds of impurities and pressure loss of the svstem, which wil affect normal operation of your air use equipment. If these problems can’t be completely solved, you will be encountered with all kinds of problems.
We will provide vou with a whole set of eqvipments and professional consultation service which solve all problems to let you correctly select, configure and install your compressed air system.
REAL ENERGY-SAVING PRODUCT

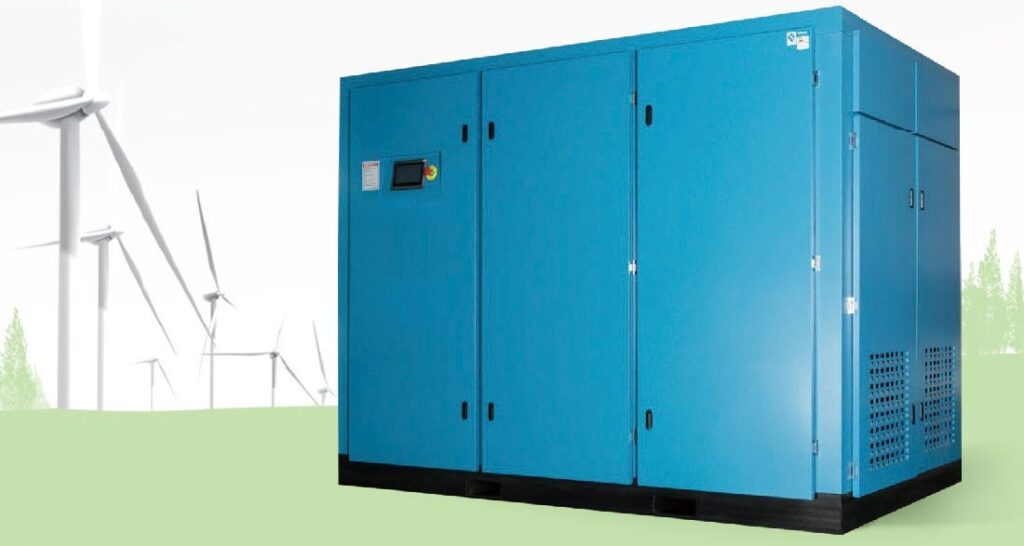

LOW-PRESSURE PERMANENT MAGNETIC VARIABLE-FREQUENCY SCREW AIR COMPRESSOR
HIGH RELIABILITY, ULTRALOW NOISE, SAVE ELECTRICITY AND ENERGY
Real energy conservation
In order to reduce your production cost and carbon emission and to protect our green homeland, we have specially designed 0.5Mpa, 0.4Mpa and 0.3Mpa energy-saving permanent magnetic low-voltage series of screw air compressors for your industry
Customized for you
If your air compressor equipment needs screw air compressors below 0.5Mpa, 0.4Mpa and 0.3Mpa, and out energy-saving air
compressor is your optimal selection.
It saves power by over 35%
No matter your new investment or replacement of existing screw air compressor with discharge pressure being 0.6-0.8Mpa our low-voltage screw air compressor will save power for you by over 35%, and for electric charge, it will not take more than one year for you to recoup the capital outlay.
Highly efficient host machine
In order to meet your requirements, highly efficient permanent magnetic host machines of 0.5Mpa, 0.4Mpa and 0.3Mpa air compressors are specially designed for you, in the meantime, we also specially design extra-large oil separating cylinder and oil-gas separating filter element to ensure that oil consumption is below 2ppm.
High reliability
Selecting our permanent magnetic low-voltage series of screw air compressors is equivalent to selecting world first-class screw air compressors with low oil consumption, low noise, low maintenance rate and high reliability, and what is more important is that it means selecting to save electric charge by about 30% in each year.
New generation of highly efficient imported host machine
- Advanced and energy saved spiral tooth type technology
- New-type 5:6 asymmetrical rotator tooth type
- German screw compressor with large rotator and low rotation speed
- Adopt top-level quality SKF taper-roller bearing imported with original packaging from
sweden - Relative power increases by more than 5%-10% in gas discharge when compared with that
of ordinary machine model
Highly efficient permanent magnetic motor
- Reasonable structure and high power density
- Very small rotator inertia and very fast response speed
- Ultrahigh intrinsic coercive rare earth permanent magnetic material with strong anti demaqnetizing capacity
- Possible constant torque output within scope of locked rotator and rated rotating speec
- Special asymmetrical magnetic circuit design, making low-rotating-speed torque ripple small
- High balancing precision, stable and high-speed operation, low noise and small vibration
- Full-sealed or high protection-grade appearance structural design
Energy-saving air inlet control system
New-type integrated inlet valve of professional design with large range of air inlet adjustment . It hasvalve requlation with small pressure loss, stable movement and long service life. Key part of inletvalve-magnetic valve uses internationally famous brand, which quarantees absolute operatingsafety and economical control of screw compressor.
Highly efficient cooling system
It adopts highly efficient fin-type cooler with large heat exchange area, surplus of heat exchangebeing 30% and more optimal cooling effect, and it can normally operate under environmentatemperature 45°C
Oil-gas separator
- Ultra-large oil separating cylinder and core specially designed for 0.5Mpa and 0.3Mpa, whicheffectively ensure lower eneray consumption.
- Air filter, oil-gas separator and oil separation core are imported with original packaging fromGermany.
- Three-level fine separation-rotational aravity, mechanical collusion and adsorptive condensation,
- Drum lid goes through galvanization processing, so it is beautiful and will never be rusted;
- Suspension type cushion which avoids pipeline fracture caused by vibration;
If you purchase 0.7Mpa machine, and actual use pressure is 0.5Mpa, then its operatingprocess is usually as following:
Screw host machine firstly compresses air to 0.7Mpa, then reduce pressure to 0.5Mpa by means of reducing valve, that’s to say, when you use 0.5Mpa pressure, you bear 0.7Vpa power consumption, and if you use 0.3Mpa pressure, then you will have to spend extra money.
This can also be proved from aspect of air discharge
For one 132KW/0.7Mpa screw air compressor, its air discharge should be 24m3/min. However, for oui
132KW/0.5Mpa screw air compressor, its air discharge can reach 30m3/min; for 132KW/0.3Mpa screw ail
compressor, its air discharge exceeds 37m3/min.

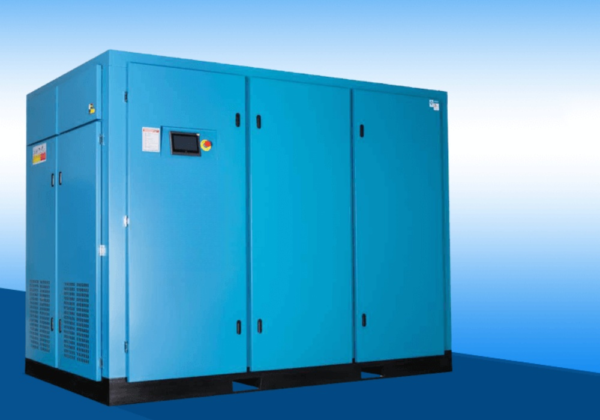

AZD Low pressure permanent magnet -220AZD
certified by
Transform your air compression experience with our Low Pressure Permanent Magnet Frequency Conversion Air Compression – delivering unmatched efficiency, reliability, and performance at every turn.
Packaging and delivery
Packaging: Pallet
Port: Shanghai
Place of Origin: China
